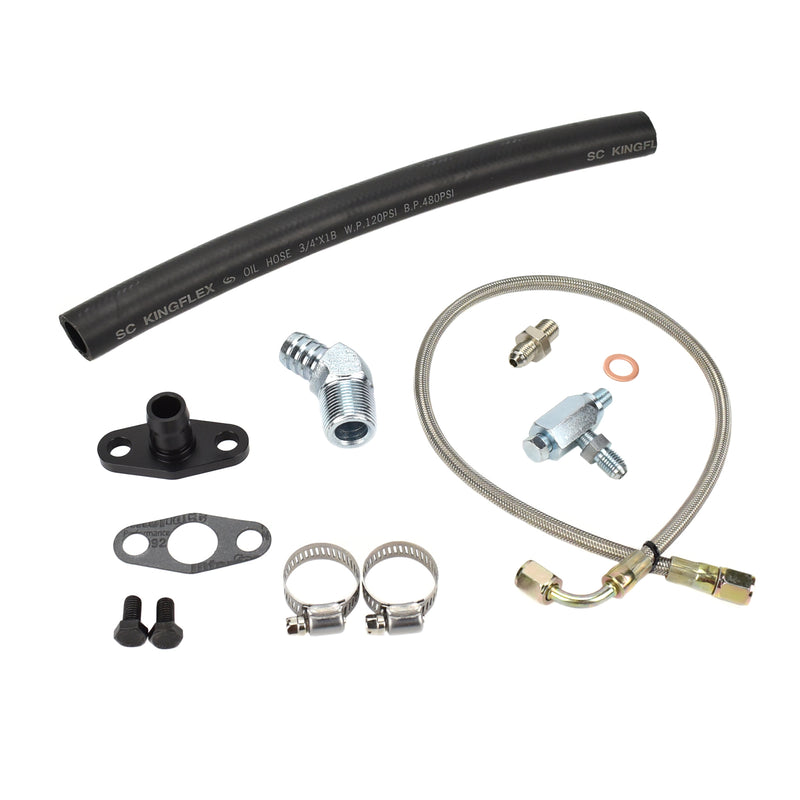

Nissan Patrol TD42 Oil Lines HX30/Super,HE250,HX35


4AN PTFE braided stainless steel oil feed line.

3/4 NBR oil return line.

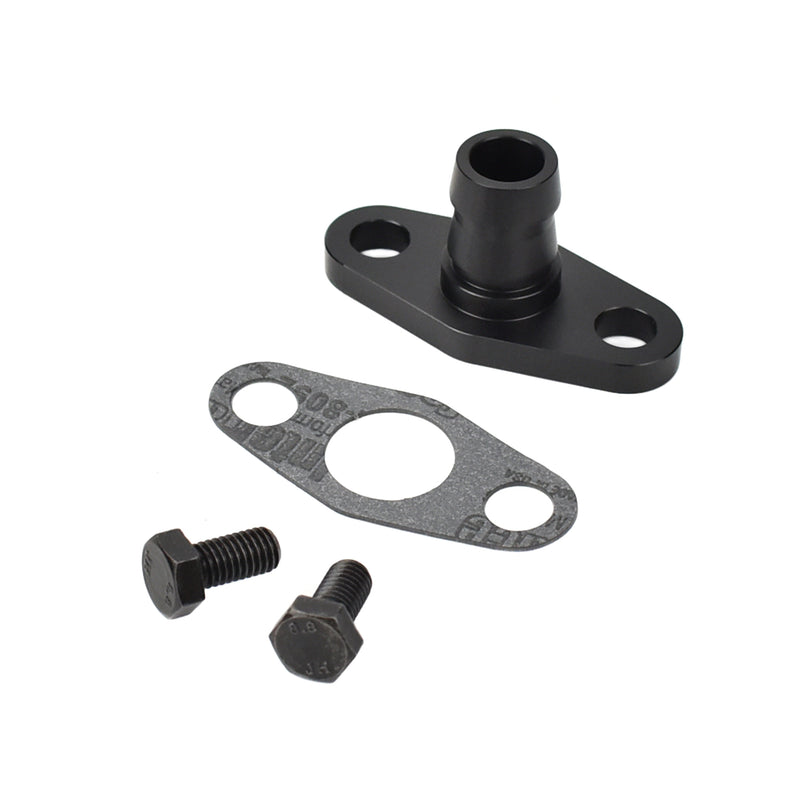

Oil return fitting 3/4" 6061-T6 aluminium.

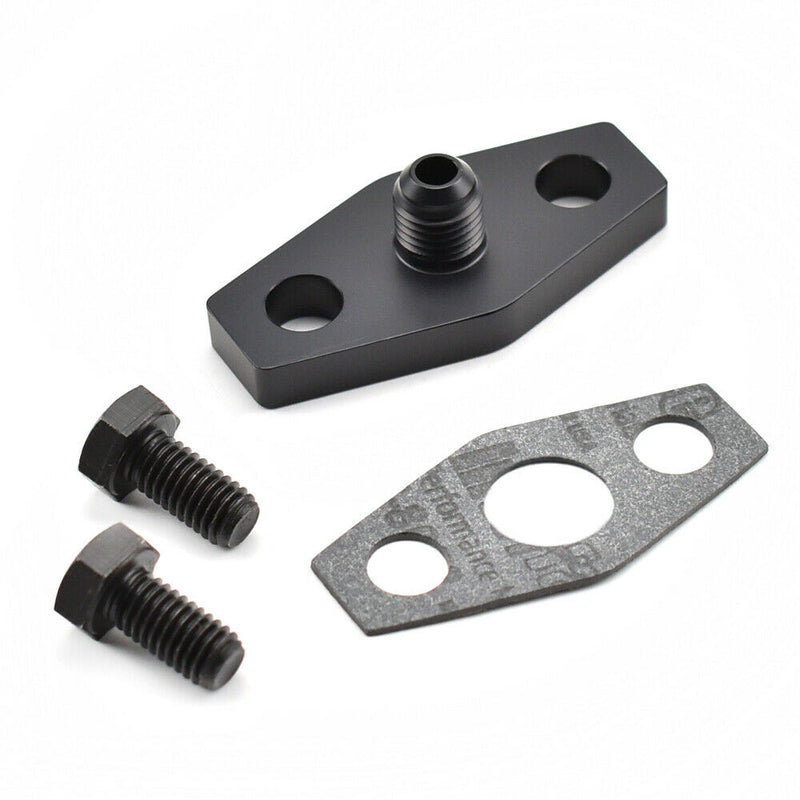

Oil feed fitting (super) 4AN 6061-T6 aluminium.

M12-4AN oil fitting mild steel HX30/35

8.8 High tensile bolts.

Hose clamps.

2mm thick gasket.

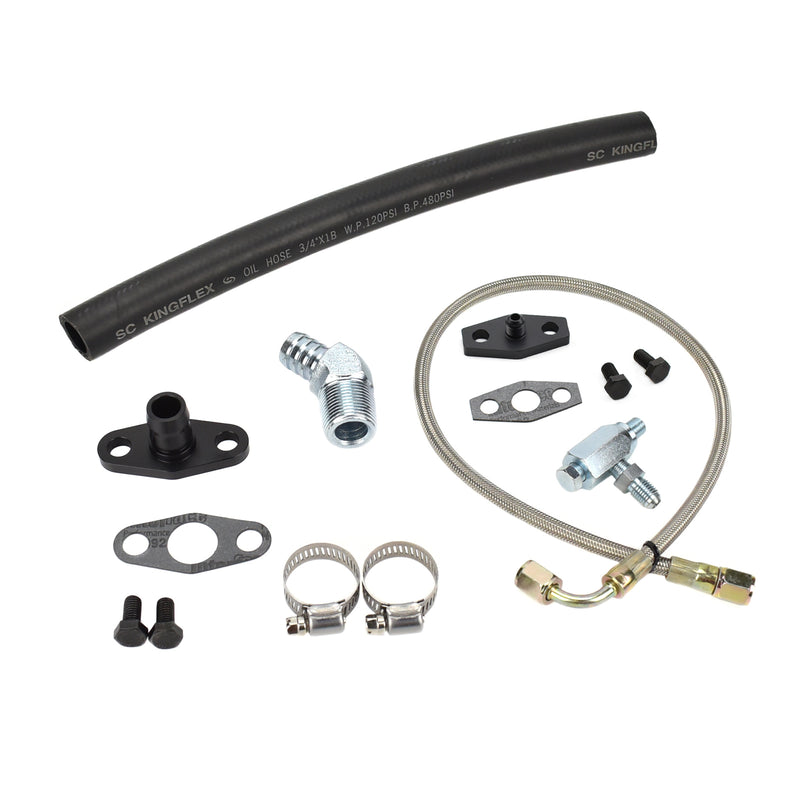

HX30 Super oil feed fitting has 2mm oil restrictor drill out to 5mm.

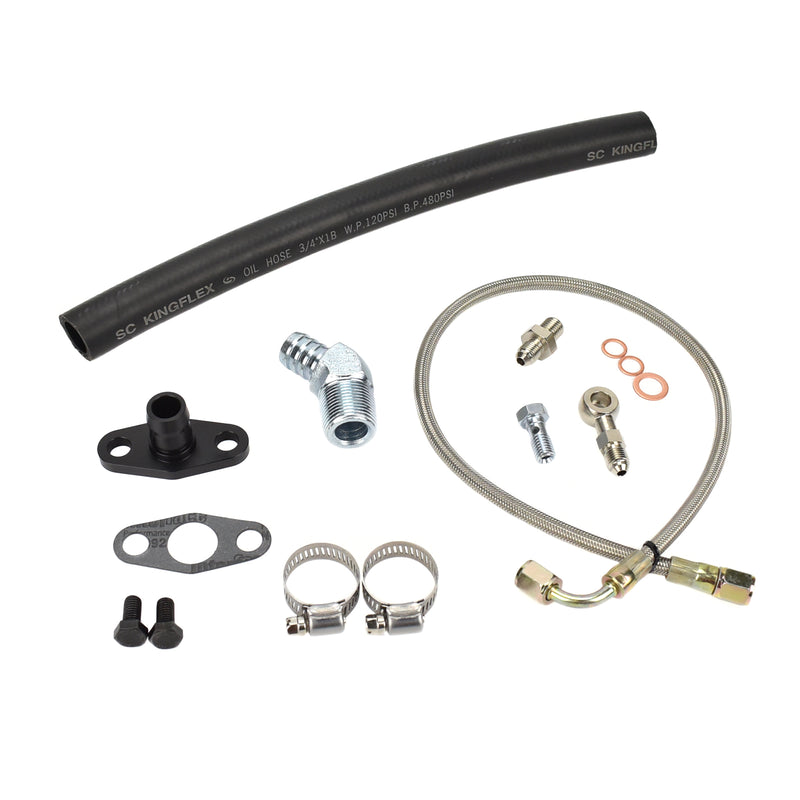

TD42 naturally aspirated engines oil feed is from oil pressure sender side. If selecting oil lines for naturally aspirated GU TD42 please select equivalent GQ oil lines.

If you have factory turbo TD42 engine in your GQ please select GU equivalent  oil lines.

Oil flow is double the amount from oil pressure sender side then from above left engine mount.

Please select the oil lines you need.
